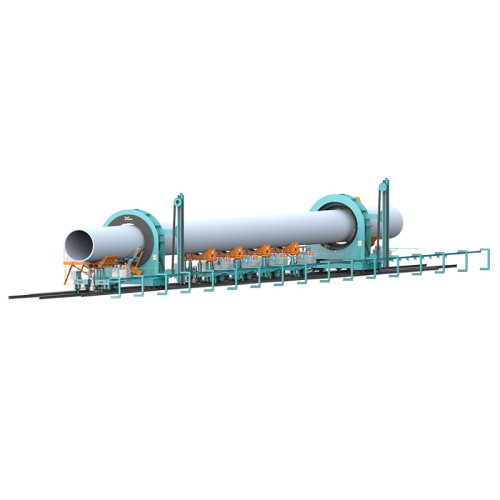

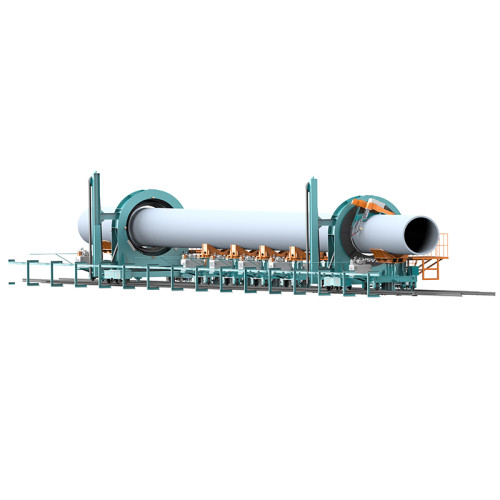

Offshore Double-end Cutting Machine
- Model
- YM-HG
Item specifics
- Pipe diameter
- φ400~1800mm,φ1400~2800mm
- Cutting length
- 9000-40000mm，Tapered dual-head penetration cut
- Cutting method
- Plasma/Flame
- Piercing thickness
- 6~100mm
- Cutting speed
- 10~700mm/min
- Moving speed
- 10~6000mm/min
- Cutting length accuracy
- ±5mm
- Bevel cutting
- End bevel ≤ ±65°
- Max. loading weight
- 120T
Review
Description
Description
Offshore Double-end Cutting Machine
1. High automation and cutting quality, featuring optimized nesting and multiple programming methods.
2. Suitable for large, long and thick (100mm) pipes
3. Processing types include end processing and intersection cutting.
VEDIO
Equipment Advantages
▶Subverting the traditional cutting process
1. Supporting various overlapping forms of groove cutting process
2. Supporting AWS (small angle groove) welding standard
3. AP (full penetration) welding process standard

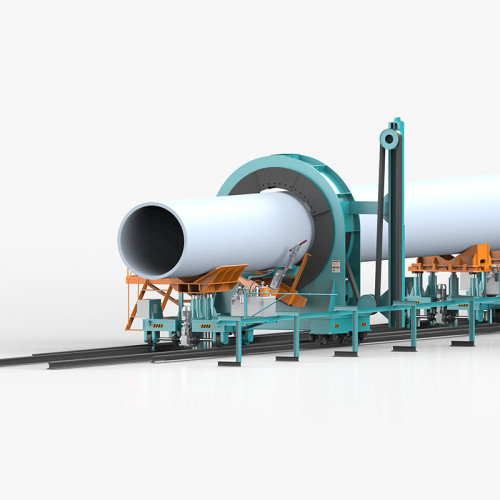

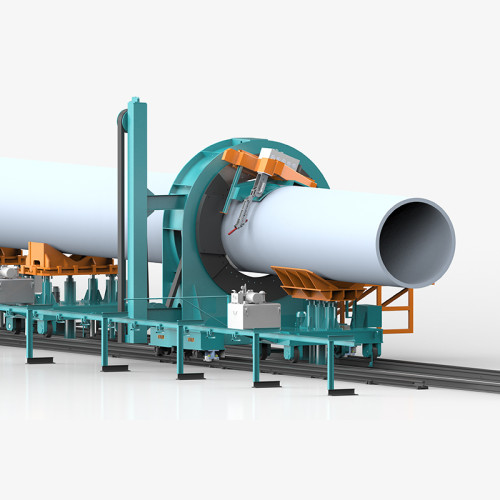

▶ Precision Double-end Cutting
The double-end cutting system enables communication between two control units, automatically acquiring origin positions to ensure synchronized cutting accuracy, which significantly improves processing efficiency and quality. The software seamlessly connects with Tekla 3D models, supporting the cutting of components with varying diameters to expand processing capabilities.
▶ Intelligent Cutting Compensation
The primary and secondary cutting stations utilize laser scanning to collect and analyze pipe ovality data, implementing real-time cutting compensation to effectively solve material shape deviations to ensure cutting precision.
▶ Accurate Pipe Centering
Four quadrant-mounted lasers on both primary and secondary units capture alignment data, feeding real-time position feedback to the main console. Independent touchscreens allow micro-adjustments in four directions, ensuring pipe centering.
