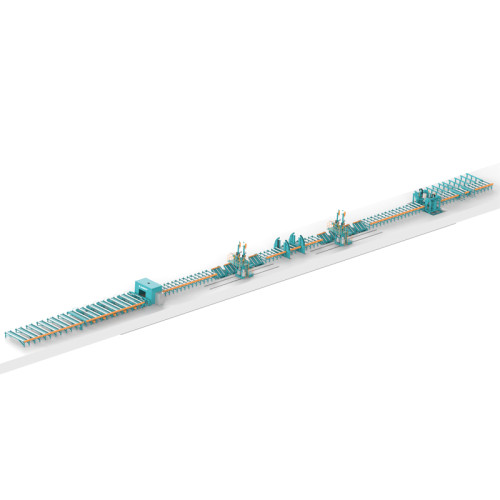

PG Beam Welding Line
- Model
- YM-PGL
Item specifics
- Flange width
- 200-1000mm
- Flange thickness
- 12-50mm
- Web height
- 500-2000mm
- Web thickness
- 10-40mm
- Workpiece lenth
- Max. 12m
- Dimension
- 110m*10m
Review
Description

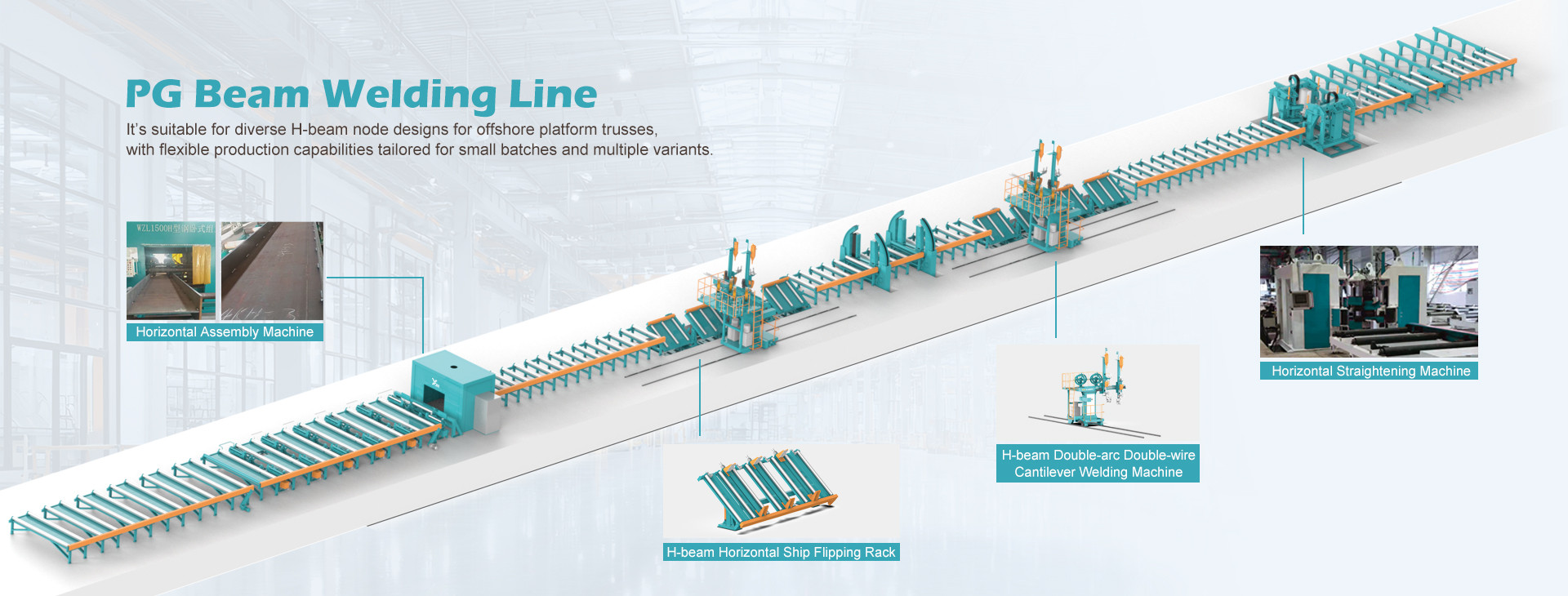

① Three plates loading and flipping → ② Horizontal assembly → ③ Weld seams 1 & 2 → ④ 180° flipping → ⑤ Weld seams 3 & 4 → ⑥ Horizontal straightening → ⑦ Transfer to temporary storage.
Equipment Advantages
▶ Compatible with welding various types of offshore beams, flexible production improves efficiency; Laser-tracked welding seam, automatic start and stop, ensuring both precision and quality in welding;
▶ The operation panel is visualized and the working interface can be switched quickly.
