Tower Section Circumferential Seam Milling Machine
- Model
- NF-75-L，NF-75-R
Item specifics
- Mode
- NF-75-L
- Spindle drive
- Power: 75 kW servo spindle motor Output torque >9600Nm Spindle speed: 0-70rpm (continuously adjustab
- Milling cutter
- $ 950 mm Cutting depth 120 mm Optional 150 mm
- X-axis (axial direction of work-piece)
- Power: 1 set 4KW servo motor Feeding rate: 0-900mm/min Continuously adjustable Stroke: 1300 mm
- Z axis (lateral direction of work-piece)
- Power: 1 set 4 KW servo motor Feeding rate: 0-900mm/min continuously adjustable Range: 100 mm
- Power supply
- Chinese/English optional
- Weight
- Approx. 12t
Review
Description
Description

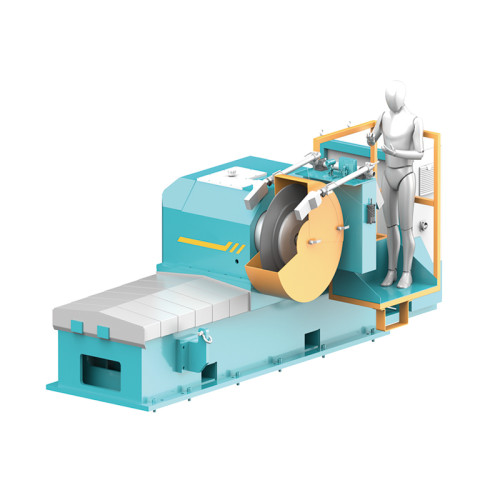

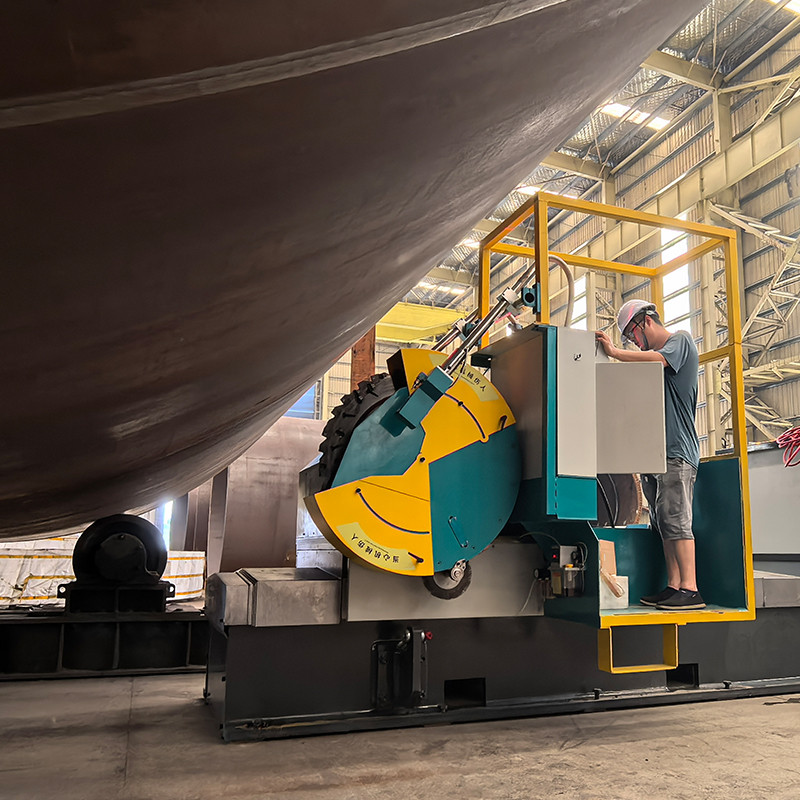

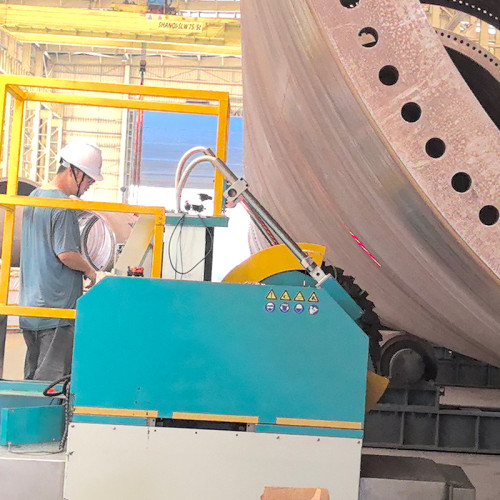

Tower Section Circumferential Seam Milling Machine
✔ Designed for Bevel Milling on External Cylindrical Welds
✔ Fully Automatic Operation
✔ Millimeter-Level Precision, No Damage to Base Material, Doubled Efficiency

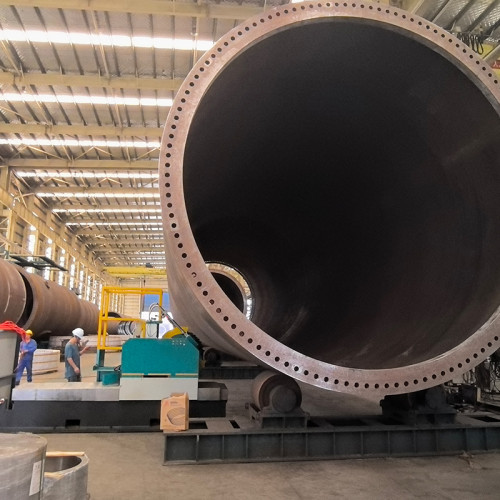

Designed for miling grooves of external welds at 4 o'clock on cyindrical and conical pipes. Automatic operation with work-piece di-can be upameter from 3000 to 15000 mm and length from 2000 to 4000 mm. The maximum milling depth can reach 120 mm, andmilling. Theto 150 mm. The powerful 75kW spindle power is coupled with gearbox drive with torque of >900oNm to ensure efficientadvanced laser distance measuring device can achieve uniform milling depth control to ensure groove accuracy.
Video
Milling Cutter Head
1.Adopt high-performance miling cutters, the milling cutter disc is specially designed according to the weld profile. Tools with differentgroove angles can be customized.
2.The standard configuration is a 16 milling cutter disc for milling U-shaped groovesIt is suitable for wind power monopiles, nuclear capacitors, chemical containers, high-pressure and ultra-high-pressure oontainers,submarines, military industry and other industries.
Technical Parameter
| Millingaccuracy | S+2 mm, depended by the movement of barrel | ||
| Control system-PLC | automated CNC control unit, with interface for MES connection or data transmission | ||
| Electrical components | It includes all electrical components and plugs (internal) | ||
| Power:supply | Voltage: AC380V/50HZ 85kW | ||
Automation | It includes laser measurement system for automatic milling depth compensation | ||
Remote service | It includes remote service equipment (4G or wifi) | ||
On-site movement | Using crane or forklift | ||
Dimension | Approx. 4.6x2x2m | ||
