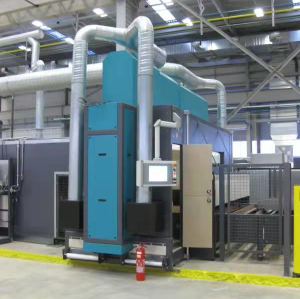

Intelligent Automatic Spraying&Painting Machine for Steel structure factory
- Model
- YM-PT-3070
Review
Description
Technical Parameters
Model
|
YM-PT-3070
|
||
Processing range | 700*3000mm | ||
Painting speed | 0.6-3m/min | ||
Spray guns | 6 + 6 | ||
Waste dust emission | <2mg/min | ||
Paint | water/oil based paint | ||
Drying method | natural gas/propane | ||
Painting unit
|
Graco, USA
|
||
Transfer weight
|
800kg/m
|
||
Power
|
90.75kw
|
VEDIO
Product Features
![](https://icdn.tradew.com/file/202211/1575595/jpg/7995035.jpg?x-oss-process=image/quality,Q_90)
1.Workpiece 3D scanning
Intelligent automatically work code generate.
The paint shall be fully utilized and sprayed evenly.
The paint film thickness is adjustable.
![](https://icdn.tradew.com/file/202211/1575595/jpg/7995036.jpg?x-oss-process=image/quality,Q_90)
2.Intelligent spraying guns
Upper 6 + lower 6, 12 spray guns in total.
Outer eight style distribution.
The member is not required to be turned after one-time spraying.
![](https://icdn.tradew.com/file/202211/1575595/jpg/7995037.jpg?x-oss-process=image/quality,Q_90)
3.Intelligent drying room
When the components are dried on the surface, they can be hoisted after blanking.
No fear of weather temperature difference
![](https://icdn.tradew.com/file/202211/1575595/jpg/7995038.jpg?x-oss-process=image/quality,Q_90)
4.Completely closed workplace
Reserved VOC processing interface.
Workers are far away from painting environment, safe and environmentally friendly.
Samples
![](https://icdn.tradew.com/file/202211/1575595/jpg/7824768.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/202211/1575595/jpg/7824769.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/202211/1575595/jpg/7824770.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/202211/1575595/jpg/7824771.jpg?x-oss-process=image/quality,Q_90)
