H Beam Assembly Machine

Model: YM-PHJ-0818,YM-PHJ-0820

Item specifics

Web height: 200~1800mm

Web thickness: 6-40mm

Flange width: 200~1000mm

Flange thickness: 6-40mm

Work-piece length: 4000~15000mm or as user’s request

Welding process: Single arc single wire，Double arc double wire

Assembly speed: 0.5~6mmin

Review

Description

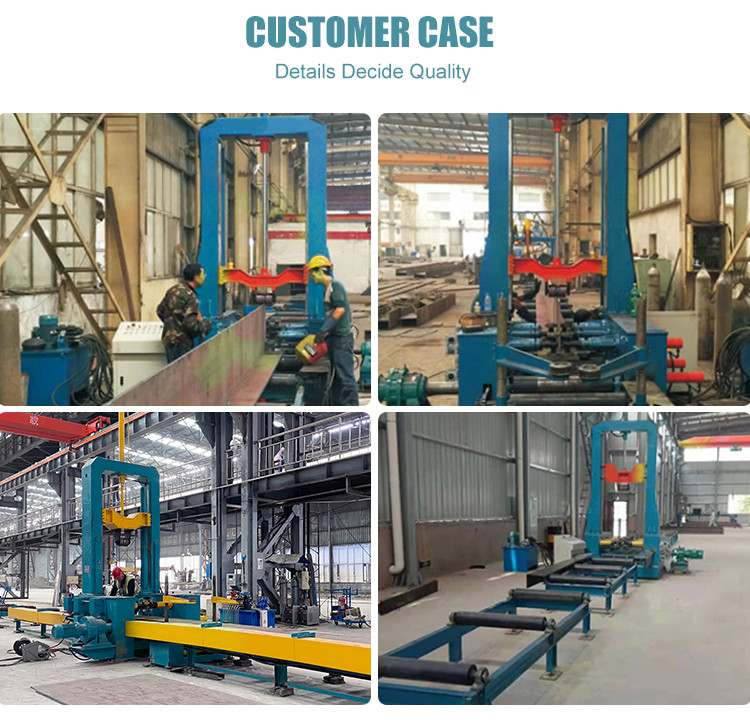

H/T Beam Assembly Machine

1.It is suitable for assembling symmetrical H beam,I beam,T beam with constant cross section.

2.The flanges and web are centered by three sets of centering manipulator groups at input roller table, then sent to the host,

3.The hydraulic cylinder drives synchronous clamping and centering device on both sides to realize self-realization.

4.PLC controls spot welding and fast forward speed, weld length and interval length during entire assembly process, which is easy to operate and it has high assembly efficiency.

Technical Parameters

Model	YM-PHJ-0818	YM-PHJ-0820
Web height	200-1800mm	200-2000mm
Web thickness	6-32mm	6-60mm
Flange width	200-800mm	200-1000mm
Flange thickness	6-40mm	6-80mm
Workpiece length	500-6500mm/min	4000-15000mm/min
Power	8.4kw(excluding two welding machines)	12.7kw(It does not include welding power source)

Details Introduction

Service Life

Main Drive Wheel

Large Webs

Welding Torch Holder

Centralized Lubrication System

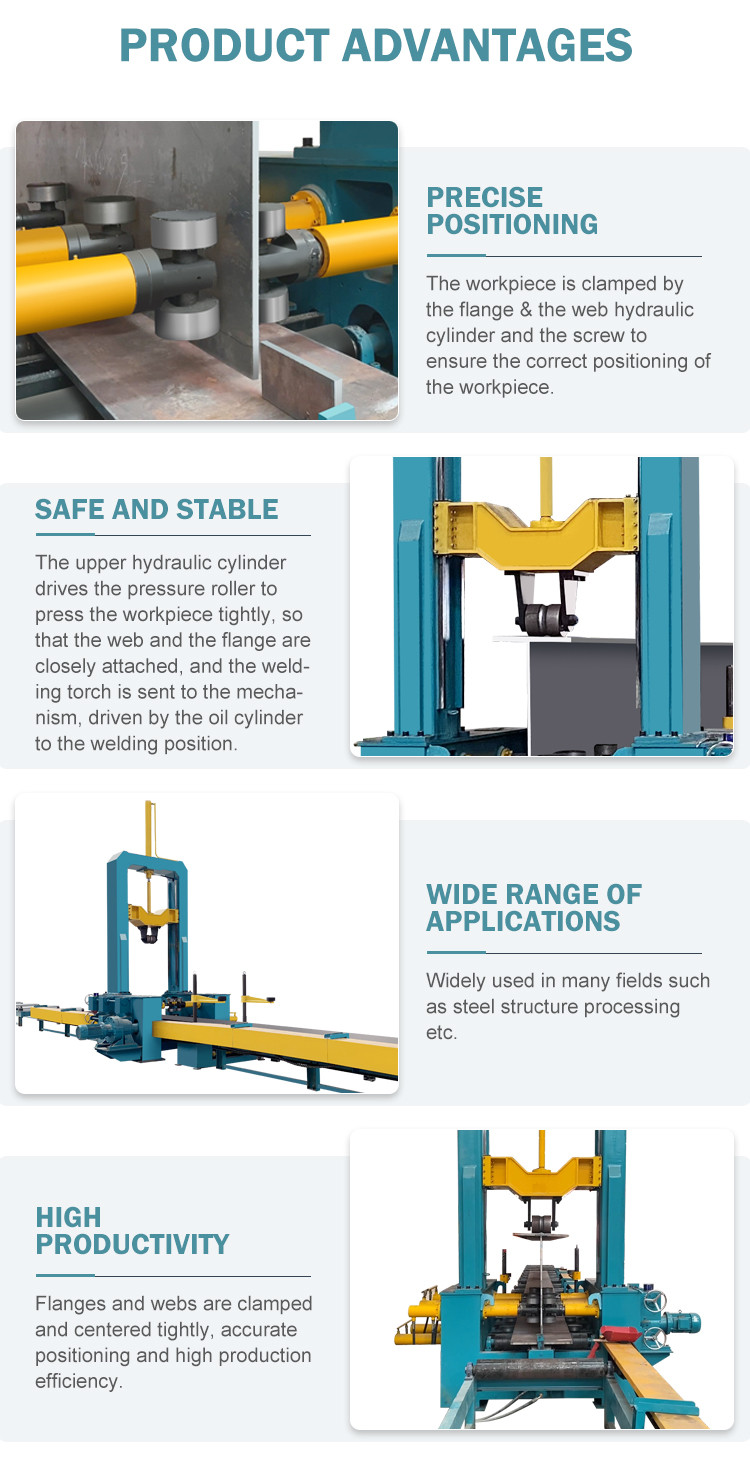

Product Advantages

Precise positioning

The workpiece is clamped by the flange & the web hydraulic cylinder and the screw to ensure the correct positioning of the workpiece.

Safe and stable

The upper hydraulic cylinder drives the pressure roller to press the workpiece tightly, so that the web and the flange are closely attached, and the welding torch is sent to the mechanism, driven by the oil cylinder to the welding position.
