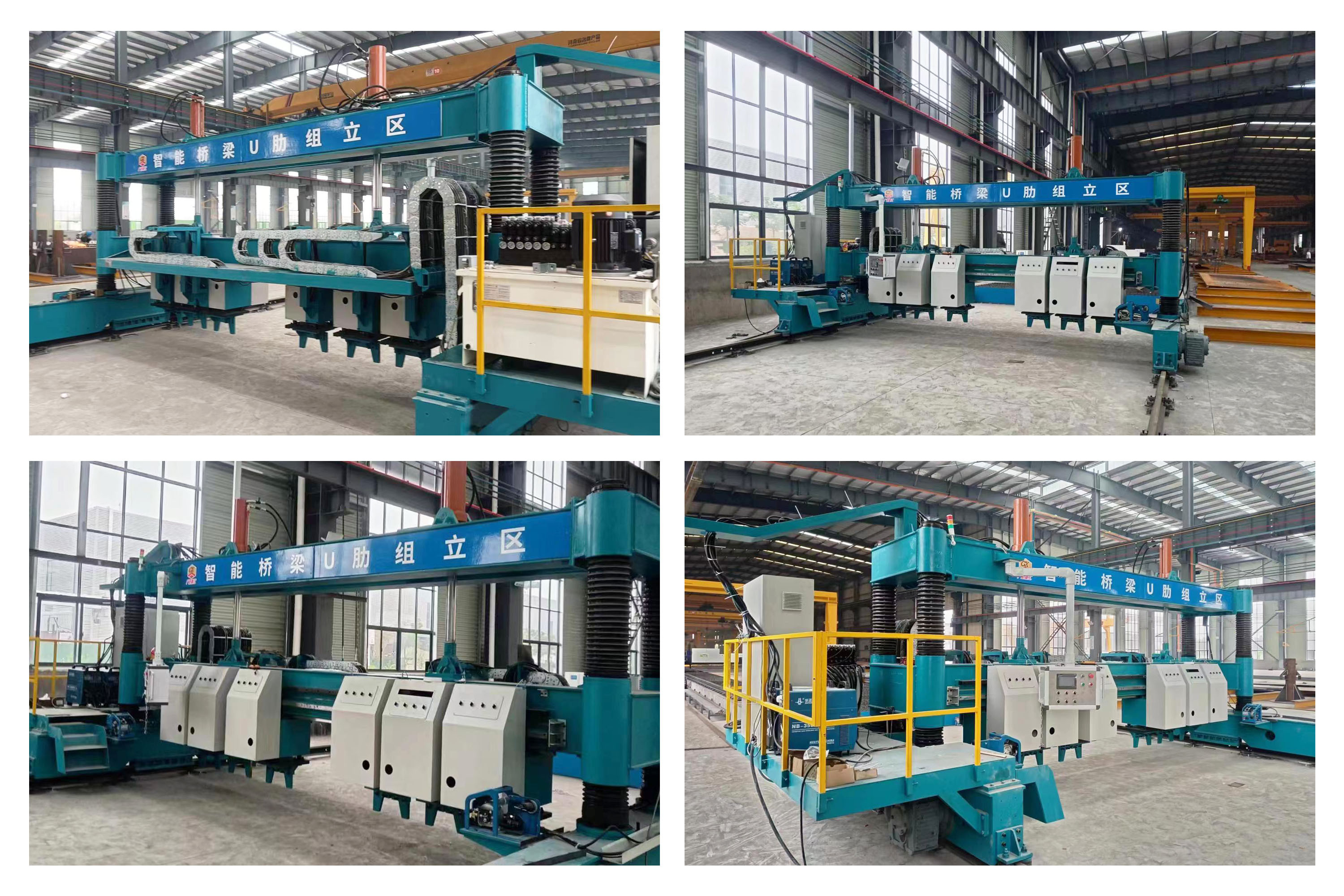

U-Rib Assembly Machine
- Model
- YM-ULZ
Item specifics
- Floor width
- ≤4500mm
- Length of base plate
- ≤18000mm
- Thickness of base plate
- 12-40mm
- Height of U-rib
- ≤320mm
- Width of U-rib
- 300-550mm
- Thickness of U-rib
- 6-12mm
- Quantity of U-ribs of each baseplate
- 1-6
- U-rib center distance
- 400-1100mm
- Assembly clearance between U-rib and panel
- ≤0.5mm
- Running speed of the tooling truck
- 200-5000mm/min(Stepless and adjustable)
- Maximum bearing capacity
- 30T
Review
Description
Product Features
High accuracy
1.Hydraulic clamping ensures that the U rib coincides with the deck plate assembling line， the contact gap between the rib plate and the deck plate is eliminated meantime.
Strong equipment stability
2.Automatic positioning on both sides of 6 U ribs, artificial alignment spot welding.
High degree of automation
3.Each part of the equipment can coordinate the action, using PLC programmable controller centralized control mode, the overall design is compact, high degree of automation, easy to operate.
Digital production
4.The auxiliary mechanism is fully configured, which can give full play to the performance of the whole machine.
