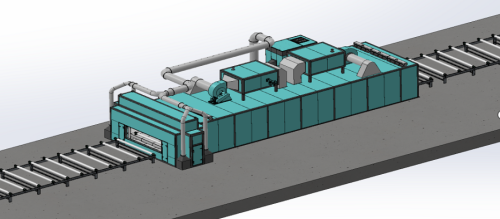

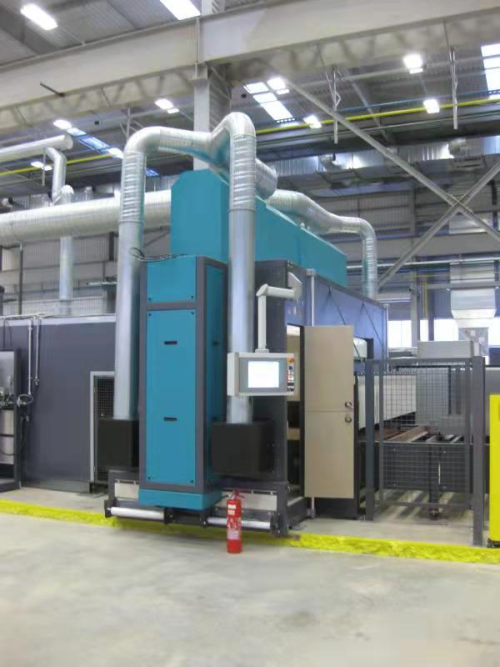

YOMI PT3070 Intelligent Painting Production Line
The YOMI PT3070 is a fully automatic, enclosed painting line for steel structures—H-beams, plates, welded parts, angle steel and pipes. It replaces manual spraying with 3D-laser path planning and 12 Graco spray guns, cutting labor and paint waste while keeping film thickness uniform and emissions controlled. It is built by Shandong Yomi Intelligent Science and Technology Co., Ltd. (YOMI), a steel-structure equipment manufacturer exporting to 120+ countries.
Key Specifications at a Glance
| Model | PT3070 |
|---|
| Workpiece cross-section (W × H) | 3000 × 700 mm |
|---|
| Workpiece length | 3000 – 12000 mm |
|---|
| Line pass speed | 0.6 – 3 m/min |
|---|
| Spray guns | 12 sets (Graco, USA): 6 top + 6 bottom |
|---|
| 3D scanning | 4 × SICK lidar (Germany), 4 mm resolution |
|---|
| Drying chamber | 40 m, gas or electric, up to 70 °C |
|---|
| Dry film thickness | 60 µm |
|---|
| Total power | ~90 kW (excl. compressed-air kinetic power) |
|---|
| Particle emission | < 5 mg/m³ at filter outlet |
|---|

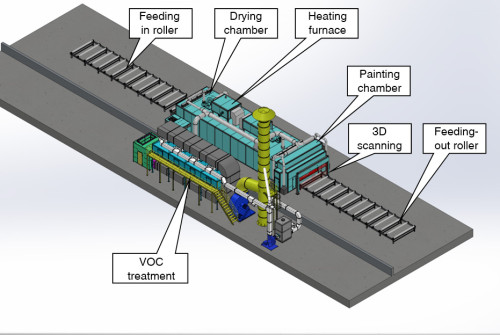

Line Layout: What a PT3070 Line Includes
The line is delivered as a complete flow: infeed roller conveyor, 3D scanning station, painting chamber with top/bottom gun gantries, flow-leveling section, drying chamber with heating furnace, outfeed roller conveyor, and a paint-mist / VOC treatment unit. Members travel in one direction, so one pass delivers a fully coated and dry-to-touch workpiece.
What It Paints and Where It Fits
The automatic painting line handles surface coating for plates, H-beams, welded assemblies, angle steel and round pipes across the steel-fabrication industry:
- Steel-structure fabrication plants and H-beam production lines
- Bridge, marine and offshore wind-power structures
- Pressure vessels, silos and heavy welded parts
- Any shop moving from manual spray to controlled, repeatable coating
Why Automate: PT3070 vs Manual Spraying
| Factor | Manual spray | YOMI PT3070 line |
|---|
| Environment | Open, high VOC, occupational hazard | Sealed room, centralized waste-gas recovery, <5 mg/m³ |
| Coverage | Uneven, slow drying | Top, bottom and ribs painted in one pass |
| Path accuracy | Operator dependent | 3D laser scan generates exact spray path |
| Paint waste | High overspray | Paint-on-presence logic, no empty spray |
| Labor | Multiple workers, health risk | One operator at the HMI |

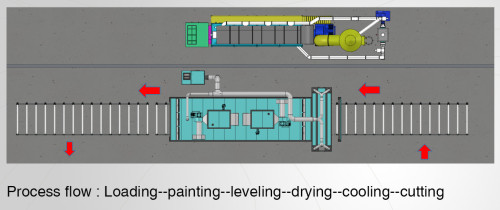

How the Line Works
- Workpiece lifted onto the infeed roller conveyor
- 3D laser scanning measures shape and spacing (4 mm step)
- YOMI intelligent software generates the automatic painting code
- 12 spray guns apply single / double / triple coverage as set
- Flow leveling, then drying chamber brings film to finger-dry
- Outfeed conveyor delivers the finished member
Core Components and Brands

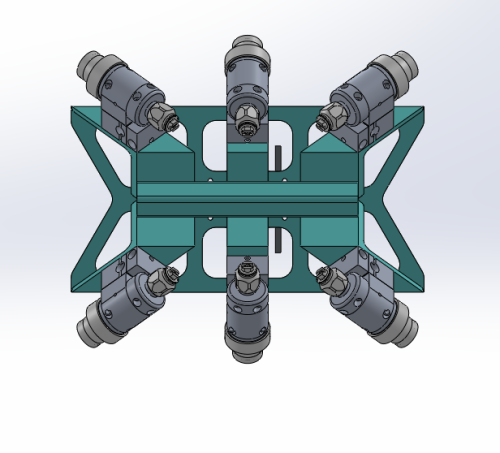

- Spray pumps & guns: Graco (USA), XM two-component proportioner, max 434 bar, mixing accuracy < 5%
- 3D scanning lidar: SICK (Germany), LMS511 series
- Control: Siemens PLC (1200 / 200smart), Advantech 21.5″ HMI, Panasonic AC servo
- Software: YOMI 3D scanning system + CNC spraying control system (data export to Excel)
- Drying burner: Best (Italy), natural-gas standard, electric optional
Full Technical Parameters
| Door size (W × H) | 3100 × 900 mm |
|---|
| Allowed member section (W × H) | 3000 × 700 mm |
|---|
| Allowed member length | 3000 – 12000 mm |
|---|
| Allowed load | 1000 kg/m |
|---|
| Productivity (pass speed) | 0.6 – 3 m/min |
|---|
| Spray guns | Graco (USA), 6 + 6 sets |
|---|
| Spray pump | Graco (USA), 1 set |
|---|
| Paint kettle | 100 L |
|---|
| Lidar / elevated laser | SICK (Germany), 4 + 4 sets |
|---|
| Infeed roller | Load 1000 kg/m, motor 3 kW, Ø159×8, length 16 m |
|---|
| Spray booth motion | Gun speed 30000 mm/min, lift 12000 mm/min, Panasonic servo |
|---|
| Dry room | Length 40 m, gas/electric, burner 3,000,000 kcal, fan 7.5 kW |
|---|
| Outfeed roller | Load 1000 kg/m, motor 3 kW, Ø159×8, length 12 m |
|---|
| Paint-mist treatment | Air volume 20000 m³/h, power 22 kW (VOC unit optional) |
|---|
| Compressed air | 0.4 – 0.6 MPa, flow 48 m³/h |
|---|
| Total power (excl. air) | ~90 kW |
|---|
Packaging, Delivery and Support
- Delivery: 60 working days after receipt of advance payment
- Warranty: 12 months
- Export packing: standard seaworthy packing for full-line shipment
- Support: English-speaking engineers, spare-parts supply, South-Africa overseas warehouse; site commissioning available
- Certifications: ISO 9001 quality system; CE-marked electrics available on request
Frequently Asked Questions
- What workpieces can the PT3070 paint?
- Plates, H-beams, welded assemblies, angle steel and round pipes up to 3000×700 mm section and 12 m length.
- Can it handle two-component (2K) coatings?
- Yes. A Graco XM two-component proportioner mixes at 1:10–10:1 with <5% error and self-alarms on deviation.
- How is film thickness controlled?
- By gun speed, nozzle size and coverage mode; the line reaches 60 µm dry film in the 40 m drying chamber.
- Does it meet emission rules?
- Painting is in a sealed room with centralized waste-gas recovery; particles at the filter outlet are below 5 mg/m³. VOC treatment is optional.
- Can it connect to my MES?
- Yes. The control system provides data-collection and open read/write interfaces for production statistics and remote start/stop.
Request a Quote
Tell us your typical member size, coating type and daily output, and YOMI will size a PT3070 painting line for your shop. Contact sales@yomi-china.com or visit www.steelstructurer.com.
